VERSA Distribution Boards
For further information please feel free to contact us via:
Email: sales@colterlec.com.au
Phone: 1300 36 26 26
The VERSA has been designed and built in Australia for all domestic, commercial and light industrial applications. It offers unique versatility for adaption to most specifications or site standards. Meeting AS/NZS 61439 compliance and an indoor IP54 rating, the VERSA is well equipped to meet your requirements.
Features

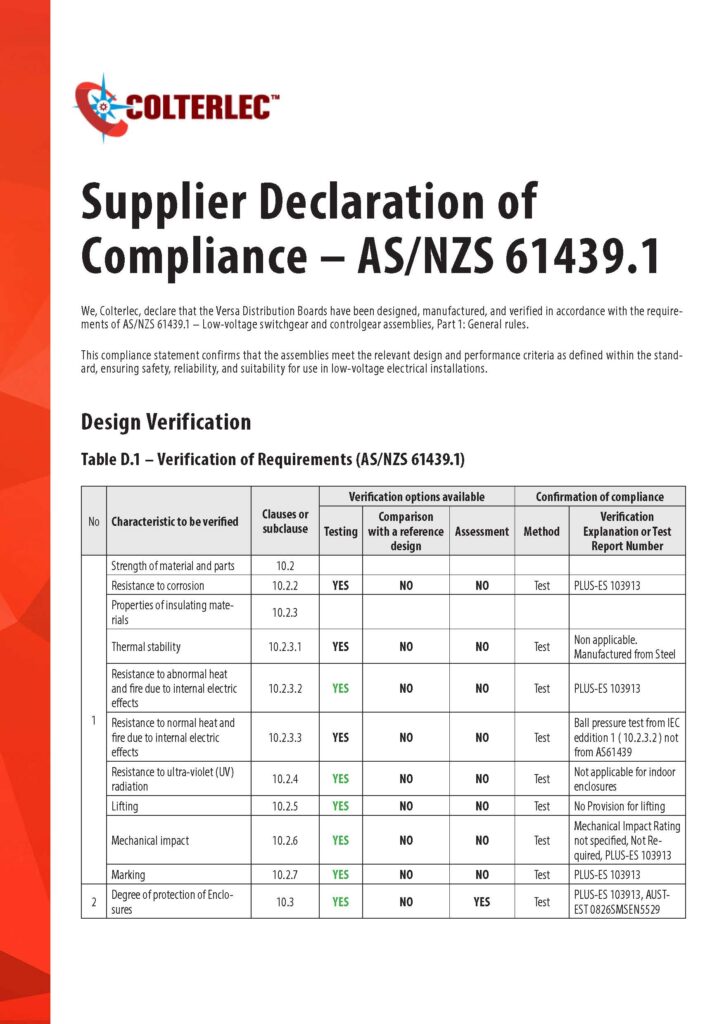

- Designed in Accordance with AS/NZS 61439
- IP54 Rating (Indoor)
- 250A Main Isolator
- 250A Chassis Busbar
- Power Chassis (Top Chassis)
- Lighting Chassis (Bottom Chassis)
- Material – 1.5mm Steel
- Mullions – 1.5mm Steel
- Gland plates – 3mm aluminium
- Finish – Pre-treatment zinc phosphate to AS4506
- Cubicle and Door – powder coated X15 orange
- Escutcheon and equipment plates – powder coated white
- Brackets and Rails – galvanised
- Door – LHS hinged, reversible, double returned and fitted with brass lift-off pintle hinges (painted black and quarter turn handles, Keyed CL001
- Brass Earth and Neutral Links – two screws per tunnel with 2 x M8 Main Studs
Downloads
